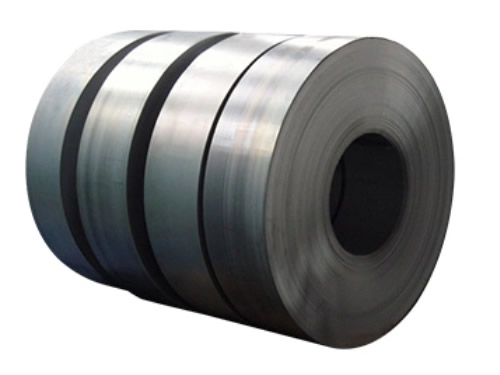

| Product Name | Q345 Carbon Steel Coil | |
| Standard | ASTM,AISI,DIN,EN,BS,GB,JIS | |
| Grade | ASTM/ASME: A36, A283, A285, A514, A516, A572, A1011/A1011M | |
GB: Q195, Q235/Q235B, Q255, Q275, Q345/Q345B, Q420, Q550, Q690 | ||
| JIS: SS400, G3131 SPHC, G3141 SPCC, G4051 S45C, G4051 S50C | ||
| AISI 1008, AISI 1015, AISI 1017, AISI 1021, AISI 1025, AISI 1026, AISI 1035, AISI 1045, AISI 1050, AISI 1055, AISI 4140, AISI 4340, AISI 4130, AISI 5140, AISI 8620, AISI 12L14 | ||
| SAE: 1010, SAE 1020, SAE 1045 | ||
| Technique | Hot rolled / Cold rolled | |
| Type | Mild steel / Medium carbon steel / High carbon steel | |
| Surface | Coating, Pickling, Phosphating | |
| Processing | Welding, Cutting, Bending, Decoiling | |
| Delivery time | 10-30 days subject to the clients' requirement and quantity | |
| Package | clients' requirement and Standard export sea-worthy packing | |
| MOQ | 1 ton | |
Available Size Range
| Dimension | Range |
| Thickness | Cold Rolled: 0.2~6mm Hot Rolled: 3~12mm |
| Width | Cold Roled: 50~1500mm Hot Rolled: 20~2000mm or customer's request |
| Length | Coil or as customer's request |
Chemical Composition
| Chemical Composition (≤%) | ||||||||||||||||
| Steel Grade | Quality Grade | C | Si | Mn | P | S | Cr | Ni | Mo | Cu | Ti | N | Nb | V | B | Al, ≥ |
| Q345 | Q345A | 0.20 | 0.50 | 1.70 | 0.035 | 0.035 | 0.30 | 0.50 | 0.10 | 0.30 | 0.20 | 0.012 | 0.07 | 0.15 | – | – |
| Q345B | 0.035 | 0.035 | ||||||||||||||
| Q345C | 0.030 | 0.030 | 0.015 | |||||||||||||
| Q345D | 0.18 | 0.030 | 0.025 | |||||||||||||
| Q345E | 0.025 | 0.020 | ||||||||||||||
Physical Properties
Density: 7.85 g/cm3 (0.284 lb/in3)
Melting point: 1450-1530 °C (2640-2800 °F)
Application
Q345 steel has high strength, excellent weldability, cold & hot workability and certain corrosion resistance. It is widely used in bridges, ships, boilers, pressure vessels, petroleum storage tanks, lifting transport machinery and other high-load welded structural parts.
